Portable biogas analyzer- GEM5000
The GEM5000 landfill gas extraction monitor for measring CH4, CO2 and O2. It's an easy to use analyser designed to aid balancing the gas field, maximise power output and ultimately maximise revenue from CH4 extraction.

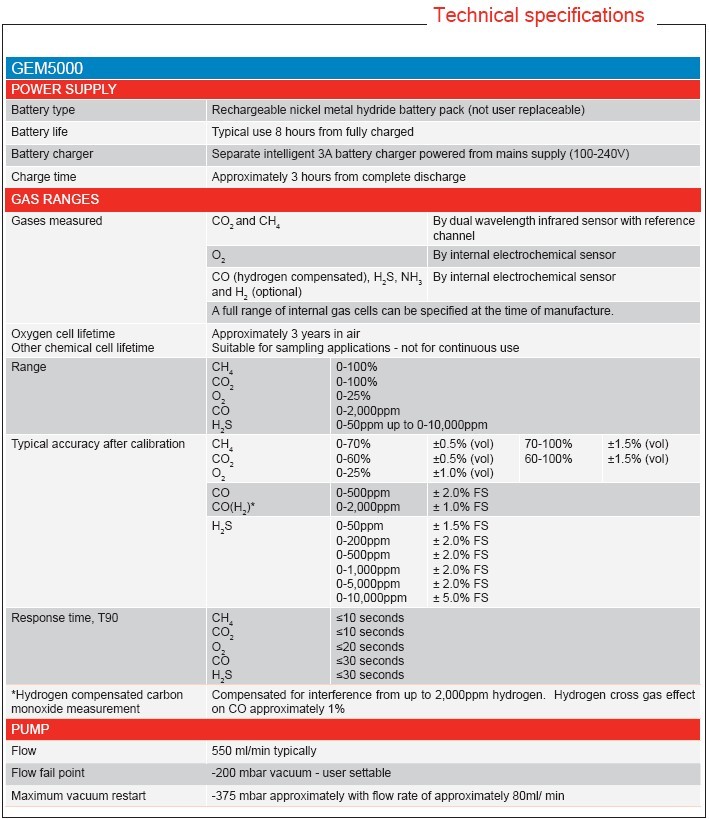

- 技術參數
- 產品特點
- 應用領域
- 資料下載
Benefits
• Aids balancing of gas field
• Real time adjustments can be made
• Maximise power output from site
• Easy to read
• No need for self-certification of anemometer
• Maximise revenue from CH4
Features
• Certified: ATEX, IECEx, MCERTS (applied for), CSA and UKAS calibration (ISO17025)
• Measures % CH4, CO2, O2
• Records static and differential pressure
• Calculates gas flow (m3/h) and calorific value (KW or BTU)
(external flow device and Gas Analyser Manager software required)
• CH4 and CO2 accuracy ±0.5% after calibration
• Modular and upgradeable
• 3 year warranty
• Robust design for market leading reliability
• Event log
Options (available at purchase or later)
• H2 compensated CO
• Choice of additional gases including H2S to 10,000ppm
• GPS / field navigator
• Gas Analyser Manager software for data download
• External gas flow devices: anemometer (ATEX) / Pitot tubes
• Aids balancing of gas field
• Real time adjustments can be made
• Maximise power output from site
• Easy to read
• No need for self-certification of anemometer
• Maximise revenue from CH4
Features
• Certified: ATEX, IECEx, MCERTS (applied for), CSA and UKAS calibration (ISO17025)
• Measures % CH4, CO2, O2
• Records static and differential pressure
• Calculates gas flow (m3/h) and calorific value (KW or BTU)
(external flow device and Gas Analyser Manager software required)
• CH4 and CO2 accuracy ±0.5% after calibration
• Modular and upgradeable
• 3 year warranty
• Robust design for market leading reliability
• Event log
Options (available at purchase or later)
• H2 compensated CO
• Choice of additional gases including H2S to 10,000ppm
• GPS / field navigator
• Gas Analyser Manager software for data download
• External gas flow devices: anemometer (ATEX) / Pitot tubes
Applications
• Landfill gas field optimisation
• Landfill gas energy calculation
• Flare / engine output estimation
